TL-WR2543N是一款雙頻千兆無線路由器，采用最新11N無線技術，2.4GHz和5GHz頻段無線傳輸速率均可達450Mbps，新一代MIMO技術，3路無線收發同時進行，增大無線覆蓋范圍。以下文檔是TL-WR2543N詳細配置指南，有需要的朋友可立即下載此文檔。
溫馨提示：
本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。
TL-WR2543N詳細配置指南目錄
第1章詳細配置指南簡介.........................................................................................1
1.1本書約定.........................................................................................................................1
1.2本書章節安排..................................................................................................................1
第2章產品概述.......................................................................................................3
2.1產品簡介.........................................................................................................................3
2.2主要特性.........................................................................................................................3
第3章硬件描述.......................................................................................................5
3.1面板布置.........................................................................................................................5
3.1.1前面板................................................................................................................5
3.1.2后面板................................................................................................................6
3.2復位................................................................................................................................6
3.3系統需求.........................................................................................................................6
3.4安裝環境.........................................................................................................................7
第4章快速安裝指南................................................................................................8
4.1硬件連接.........................................................................................................................8
4.2建立正確的網絡設置.......................................................................................................9
4.3快速安裝指南................................................................................................................11
第5章配置指南.....................................................................................................16
5.1啟動和登錄...................................................................................................................16
5.2運行狀態.......................................................................................................................16
5.3設置向導.......................................................................................................................18
5.4WPS一鍵安全設定.......................................................................................................18
5.5網絡參數.......................................................................................................................27
5.5.1WAN口設置.....................................................................................................28
5.5.2LAN口設置......................................................................................................37
5.5.3MAC地址克隆..................................................................................................38
5.6無線設置.......................................................................................................................38
5.6.1基本設置...........................................................................................................39
5.6.2無線安全設置...................................................................................................40
5.6.3無線MAC地址過濾..........................................................................................44
5.6.4無線高級設置...................................................................................................46
5.6.5主機狀態...........................................................................................................48
5.7DHCP服務器...............................................................................................................48
5.7.1DHCP服務.......................................................................................................48
5.7.2客戶端列表.......................................................................................................49
5.7.3靜態地址分配...................................................................................................50
5.8網絡共享.......................................................................................................................51
5.8.1網絡共享管理...................................................................................................51
5.8.2FTP服務器......................................................................................................52
5.8.3媒體服務器.......................................................................................................55
5.8.4共享帳戶...........................................................................................................56
5.9轉發規則.......................................................................................................................57
5.9.1虛擬服務器.......................................................................................................58
5.9.2特殊應用程序...................................................................................................59
5.9.3DMZ主機.........................................................................................................61
5.9.4UPnP設置.......................................................................................................61
5.10安全功能.......................................................................................................................62
5.10.1安全設置...........................................................................................................63
5.10.2高級安全設置...................................................................................................63
5.10.3局域網WEB管理.............................................................................................65
5.10.4遠端WEB管理.................................................................................................66
5.11家長控制.......................................................................................................................68
5.12上網控制.......................................................................................................................70
5.12.1規則管理...........................................................................................................71
5.12.2主機列表...........................................................................................................73
5.12.3訪問目標...........................................................................................................74
5.12.4日程計劃...........................................................................................................76
5.13路由功能.......................................................................................................................76
5.13.1靜態路由表.......................................................................................................77
5.13.2系統路由表.......................................................................................................78
5.14IP帶寬控制...................................................................................................................78
5.14.1控制設置...........................................................................................................78
5.14.2控制規則...........................................................................................................79
5.15IP與MAC綁定............................................................................................................80
5.15.1靜態ARP綁定設置..........................................................................................81
5.15.2ARP映射表......................................................................................................82
5.16動態DNS......................................................................................................................83
5.17系統工具.......................................................................................................................84
5.17.1時間設置...........................................................................................................85
5.17.2診斷工具...........................................................................................................86
5.17.3軟件升級...........................................................................................................89
5.17.4恢復出廠設置...................................................................................................89
5.17.5備份和載入配置................................................................................................90
5.17.6重啟路由器.......................................................................................................92
5.17.7修改登錄口令...................................................................................................92
5.17.8系統日志...........................................................................................................93
5.17.9流量統計...........................................................................................................95
錄附錄AFAQ..............................................................................................................97
錄附錄BIE瀏覽器設置.............................................................................................101
錄附錄CMAC地址查詢............................................................................................104
錄附錄D規格參數.....................................................................................................109

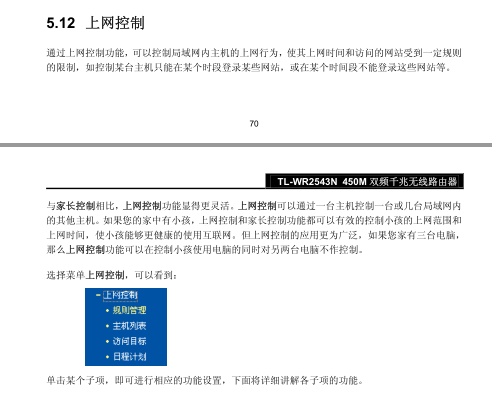

TL-WR2543N配置指南——上網控制
TL-WR2543N規格參數
協議標準
IEEE 802.11n、IEEE 802.11g、IEEE 802.11b；
IEEE 802.3、IEEE 802.3u；
無線速率
2.4GHz頻段：450Mbps
5GHz頻段：450Mbps
接口
4個10/100/1000M自適應LAN口，支持自動翻轉（Auto MDI/MDIX）；
1個10/100/1000M自適應WAN口，支持自動翻轉（Auto MDI/MDIX）；
1個USB 2.0接口。
按鈕
電源開關；
WPS按鈕；
Reset按鈕。
LED
電源指示燈；
2.4GHz無線狀態指示；
5GHz無線狀態指示；
各端口Link/Act指示；
USB口狀態指示；
WPS安全狀態指示。
天線
3根外置可拆卸全向天線
尺寸
234mm x 155mm x 36mm（L x W x H）
